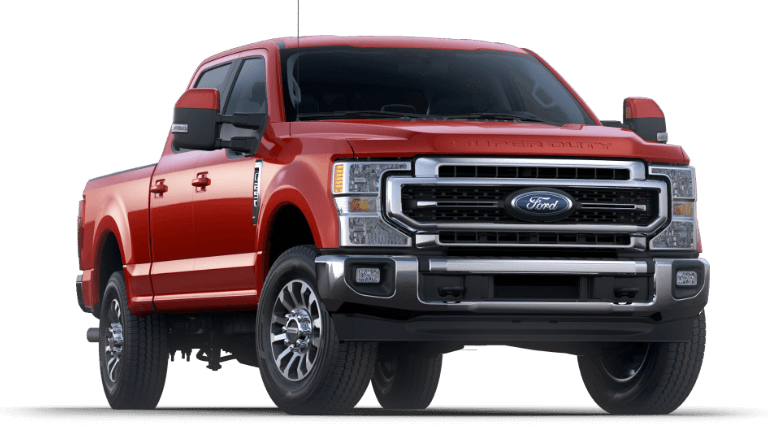

The 2020 Ford F-250 is a highly capable truck that can handle the toughest of jobs. Are you interested in learning more about the three engines available on the F-250? Our team at Terry's Ford of Peotone in Peotone, IL, put this page together to help with your research. Keep reading to learn more. If you have any questions, feel free to give us a call at (888)-229-0781 or send us a message online.
Ready to get behind the wheel of the 2020 Ford F-250? Find your favorite F-250 trim in our inventory, then browse through our current finance and lease offers to find one that fits your budget.
2020 Ford F-250Engine Differences: Gas vs. Diesel
The Ford F-250 gives you the power of choice when it comes to engines. There are two gas engines and one diesel engine available - keep reading to learn more.
6.2L SOHC Two-Valve Flex Fuel V8
Standardly equipped on all 2020 Ford F-250 trims, the 6.2L V8 gas-powered engine features exceptional torque to give you up to 15,000 pounds of towing capacity. Paired with the Ford TorqShift® G six-speed transmission, the 6.2L V8 engine delivers peak torque at a lower revolutions per minute (RPM) in order to generate high torque throughout the midrange of the powerband.
6.7L Power Stroke® V8 Turbo Diesel
The 2020 Ford F-250 has the option of equipping your truck with the third generation 6.7L Power Stroke diesel engine. With a new steel piston design, the Power Stroke utilizes the piston with a short overall height, which in turn compensates for the increased weight of the steel. This piston offers increased strength and resilience and lower friction. The 6.7L V8 is paired with a ten-speed automatic transmission.
7.3L 2V DEVCT NA PFI V8
If you're looking for the most powerful gas engine built for strenuous jobs that require heavy hauling, then you'll enjoy the 7.3L V8 engine. This engine was designed to optimize low-end torque, as well as utilize variable-cam timing assists to optimize high-output power.
Engine Specs & Differences
Take a look at the table below to view the specifications of each engine.
| Engine | 6.2L SOHC 2-Valve Flex Fuel V8 | 6.7L Powerstroke V8 Turbo Diesel | 7.3L 2V DEVCT NA PFI V8 |
|---|---|---|---|
| Horsepower | 385 HP | 475 HP | 430 HP |
| Torque | 430 lb.-ft. | 1,050 lb.-ft. | 475 lb.-ft. |
| Max. Towing Capacity | 15,000 lbs. | 20,000 lbs. | 15,000 lbs. |
2020 Ford F-250Towing Capacity
Towing capacity is the maximum amount of weight your vehicle can tow when pulling a trailer. This capacity factors in the weight of the truck and any cargo as well. Towing capacity is calculated by taking your truck's gross combined vehicle weight rating (GCVWR) and subtracting your truck's curb weight. The GCVWR is defined as the maximum weight of a loaded vehicle and its attached loaded trailer - so this includes passengers, cargo inside the truck, and the trailer attached.
Towing capacity can depend on which engine you decide to equip with your F-250. As seen in the table above, the 6.7L V8 engine can carry a much larger towing capacity than the 6.2L V8 and 7.3L V8. Make sure to check your owner's manual to determine your exact towing capacity.
2020 Ford F-250Payload Capacity
The maximum payload capacity on the 2020 Ford F-250 is 4,260 pounds. A truck's payload capacity refers to the maximum amount of weight you can safely add to a truck's cargo area in addition to its empty weight (or curb weight). To calculate the payload capacity, you need to know both the curb weight and the GVWR. Subtract the curb weight from the GVWR to find the payload capacity. For example, the GVWR for the 2020 Ford F-250 4x2 when equipped with a regular cab and 141-inch wheelbase is 10,000 pounds. The curb weight is 5,740 pounds. 10,000 pounds (GVWR) minus 5,740 pounds (curb weight) equals a payload capacity of 4,260 pounds.
2020 Ford F-250Towing Assist Technology
The 2020 Ford F-250 makes towing a lot easier with towing assist technology features, including:
- Trailer sway control
- BLIS® with trailer coverage and cross-traffic alert
- Trailer reverse guidance
- High Capacity Trailer Tow Package with Ultimate Trailer Tow Camera System
2020 Ford F-250Engine Model Availability
View the table below to learn which engines are available for each trim.
Standard Engine
Optional Engine
| 6.2L SOHC 2-Valve Flex Fuel V8 | 6.7L Powerstroke V8 Turbo Diesel | 7.3L 2V DEVCT NA PFI V8 | |
|---|---|---|---|
| XL | |||
| XLT | |||
| Lariat | |||
| King Ranch® | |||
| Platinum | |||
| Limited |
Learn More About the 2020 Ford F-250
Interested in learning more about the Ford F-250? Check out our 2020 Ford F-250 trims page to learn about each trim individually. If you have any questions, feel free to give us a call at (888) 229-0781 or send us a message online.
